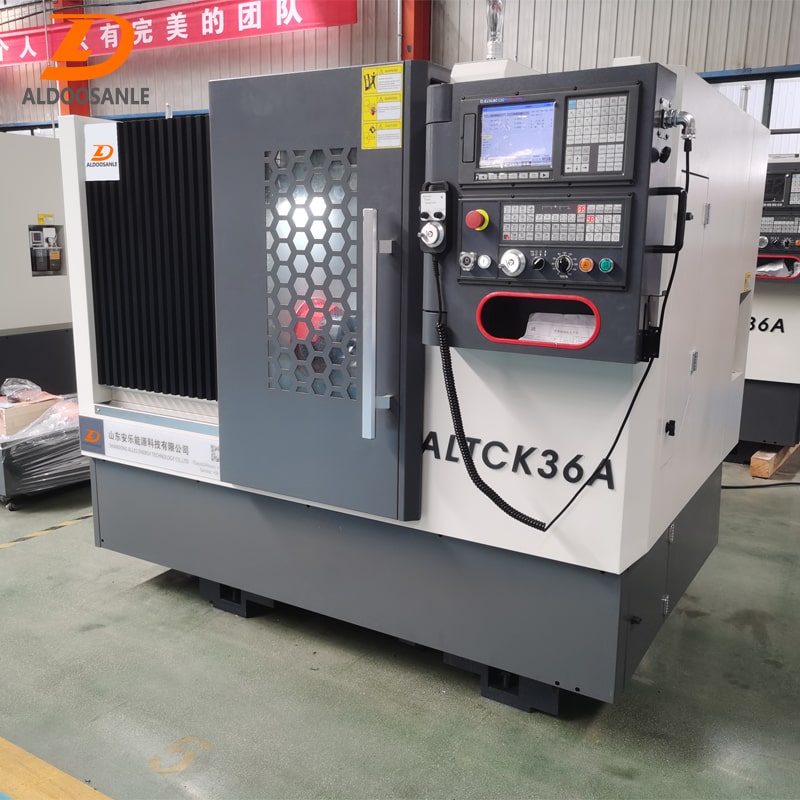

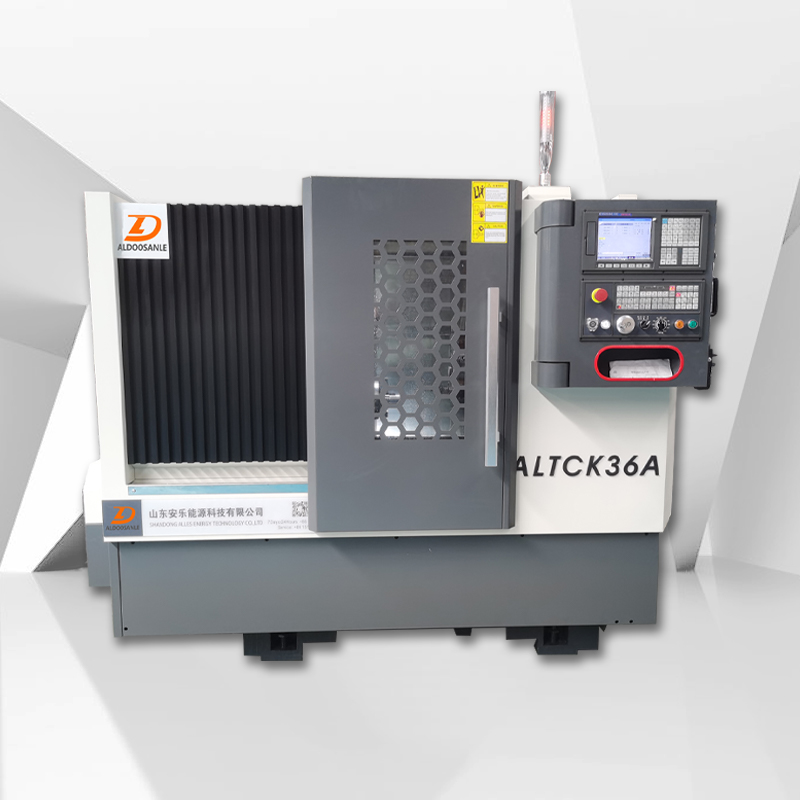

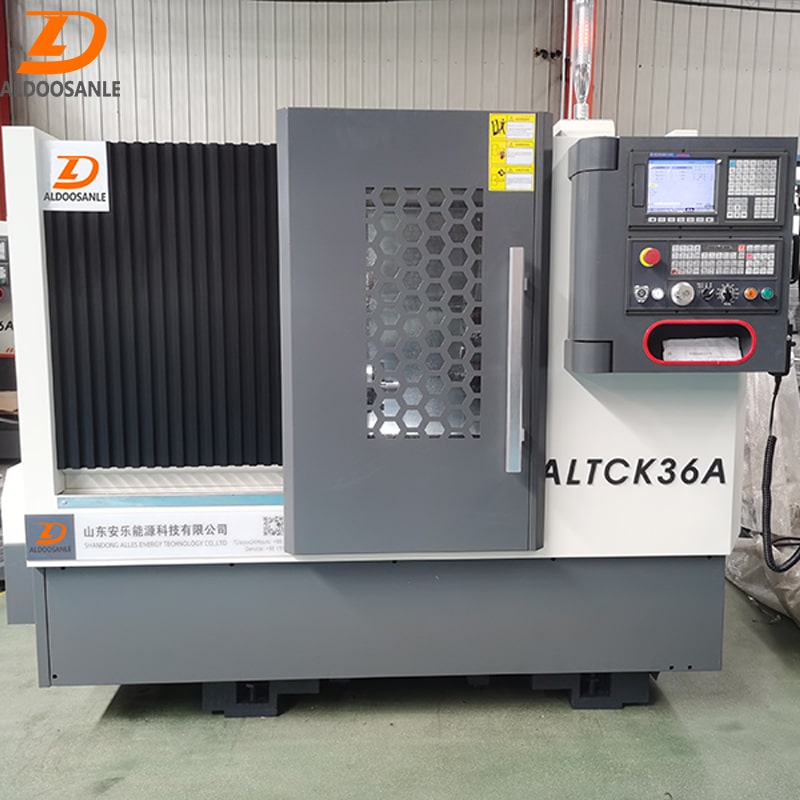

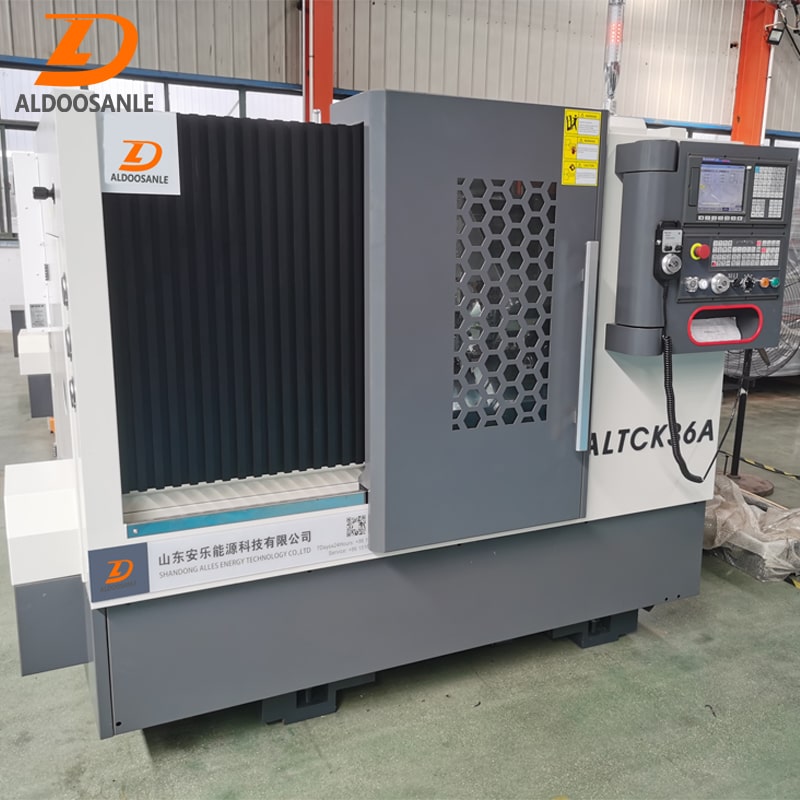

ALTCK36A CNC lathe is a high-performance, high-precision CNC machining equipment, which is suitable for the processing needs of many industries. It has multi-functional processing capabilities and can complete operations such as turning, milling, drilling, and tapping. ALTCK36A CNC lathe adopts advanced CNC technology and precision transmission system, which can achieve high-precision processing effect, and is equipped with automatic turret system and advanced CNC system to improve production efficiency and operation convenience. The safety protection device guarantees the safety of the operator. ALTCK36A CNC lathe is the ideal choice for realizing precision machining and improving production efficiency.
ALTCK36A horizontal CNC lathe is a high-performance CNC machining equipment with excellent features and a wide range of application industries. Horizontal CNC lathe is suitable for many fields, and has a variety of optional configurations, which can be customized according to needs to meet different processing requirements.
1. High-precision machining: ALTCK36A CNC lathe adopts advanced numerical control technology and high-precision transmission system, which can realize precision machining and ensure that the size and surface quality of parts meet strict requirements.
2. Multifunctional processing: The CNC lathe has multiple processing functions, including turning, milling, drilling and tapping, etc., which can meet the processing needs of different parts and improve production efficiency.
3. Efficient production: ALTCK36A CNC lathe is equipped with quick tool change system and automatic workbench to realize high-speed and continuous processing operations, shorten production cycle and improve production efficiency.
4. Stability and reliability: The equipment adopts high-quality structural design and advanced control system, which has excellent stability and reliability, ensuring high-precision and high-quality processing during long-term operation.
1. Automobile manufacturing industry: ALTCK36A cnc turning machines play an important role in the automobile manufacturing industry. cnc turning machines can be used to machine engine blocks, crankshafts, camshafts, steering system components, transmission parts and other auto parts. The high-precision machining capabilities and multi-functional features of cnc turning machines make them ideal for precision machining and efficient production of auto parts.
2. Aerospace industry: In the field of aerospace, ALTCK36A cnc lathe machine can be used to process aero-engine parts, aircraft structural parts, hydraulic system components, etc. The high accuracy and stability of the cnc lathe machine is essential to meet the stringent requirements of the aerospace industry for component quality and performance.
3. Shipbuilding industry: In the field of shipbuilding, ALTCK36A CNC lathes can be used to process hull structures, marine engine parts, propulsion system components, etc. Its efficient processing capacity and stability help to improve the efficiency and quality of the shipbuilding process.
4. General machinery manufacturing industry: ALTCK36A CNC lathe is also suitable for general machinery manufacturing industry, including manufacturing various mechanical equipment parts, such as industrial machinery, instruments, molds, etc. The multi-functional processing capability and high-precision performance of cnc lathe machine make it an ideal choice for realizing the customized processing needs of various mechanical equipment.
5. Other industries: In addition to the above industries, ALTCK36A slant bed cnc lathe can also be widely used in other fields, such as electronic equipment manufacturing, medical equipment manufacturing, energy equipment manufacturing, etc. The flexibility and optional configuration of the slant bed cnc lathe make it suitable for various processing requirements and fields.
1. Spindle: The spindle system with high speed, high precision and high rigidity can realize precision machining.
2. Knife turret: automatic turret is adopted, which can accommodate multiple knives and realize automatic tool change and multi-station processing.
3. Feeding system: Equipped with a high-precision feeding system, it can realize accurate processing control and workpiece feeding.
4. Control system: Standard CNC system, with friendly man-machine interface and rich processing control functions, easy to operate and program.
5. Automatic lubrication system: It has automatic lubrication function to ensure the lubrication effect of each part of the equipment and prolong the service life of parts.
6. Safety protection device: equipped with complete safety protection device, including protective door, emergency stop button, etc., to ensure the safety of operators.
7. Lighting system: It is equipped with a lighting system to provide sufficient lighting conditions, which is convenient for operation and observation of the processing process.
1. Tool measurement system: An online tool measurement system is optional to monitor tool wear in real time and improve machining accuracy and cutting efficiency.
2. Processing lubrication system: An efficient processing lubrication system can be selected to ensure cooling and lubrication effects during processing and improve the surface quality of workpieces.
3. Automatic loading and unloading system: optional automatic loading and unloading device can realize automatic production process, improve production efficiency and reduce labor cost.
4. Numerical control system: CNC systems with different models and functions can be selected to provide more operation interfaces and processing control functions to meet different processing needs.
Section |
Item |
ALTCK36A |
The main parameters |
Maximum upper turning diameter of bed |
Φ360mm |
Maximum machining diameter on tool post |
Φ140mm |
|
Maximum processing length |
300 |
|
Spindle and chuck parameters |
Spindle head type (optional chuck) |
A2-5 |
Spindle motor power |
3.7/5.5KW |
|
Spindle speed |
4000pm |
|
Spindle hole diameter |
Φ48 |
|
Bar diameter |
Φ41 |
|
Feed part parameters |
X/Z axis screw specifications |
25*10/32*10 |
X axis limit stroke |
170 |
|
X axis motor torque |
6N.M |
|
X/Z axis rail specifications |
30/30 |
|
Z axis limit stroke |
350 |
|
Z-axis motor torque |
6N.M |
|
X, Z axis connection |
Direct |
|
Turret |
turret |
Horizontal 8-station hydraulic turret |
Tail stock part |
Sleeve diameter |
Φ65 |
Sleeve stroke |
60 |
|
Maximum stroke of tailstock |
200 |
|
Taper hole of tailstock sleeve |
Mohs 4# |
|
Bed frame |
Bed form and slope |
Integral/45° |
Shape |
length * width * height (mm) |
2200×1600×1850 |
Weight |
Weight (approximate weight) |
2200kg |
