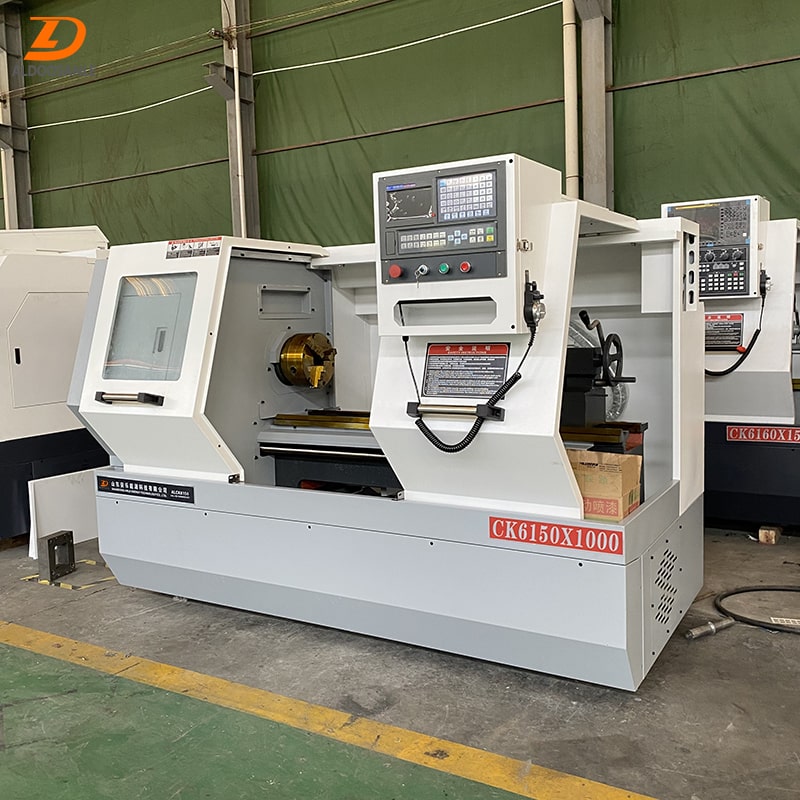

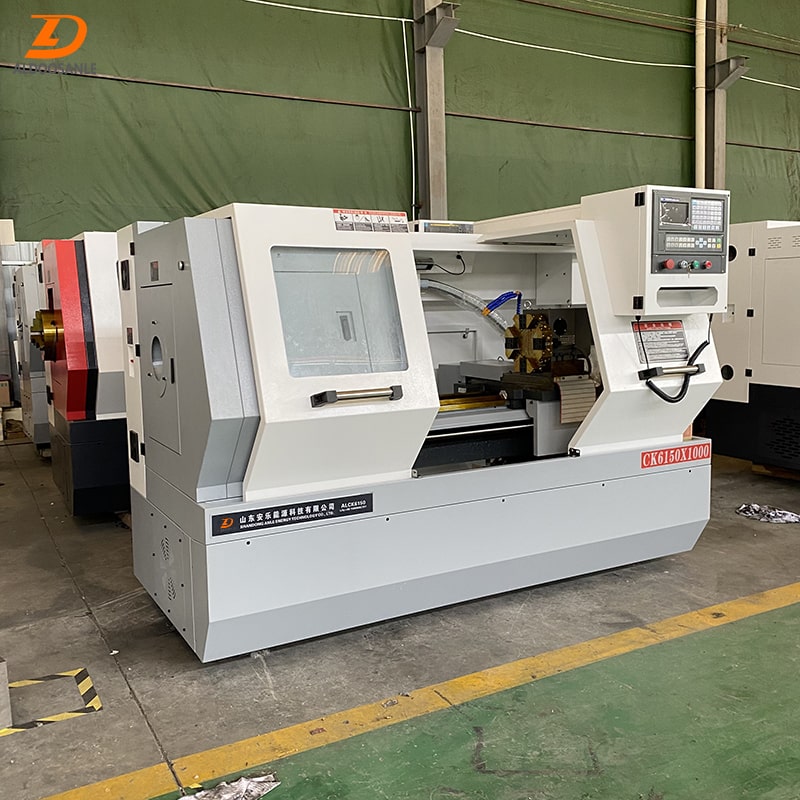

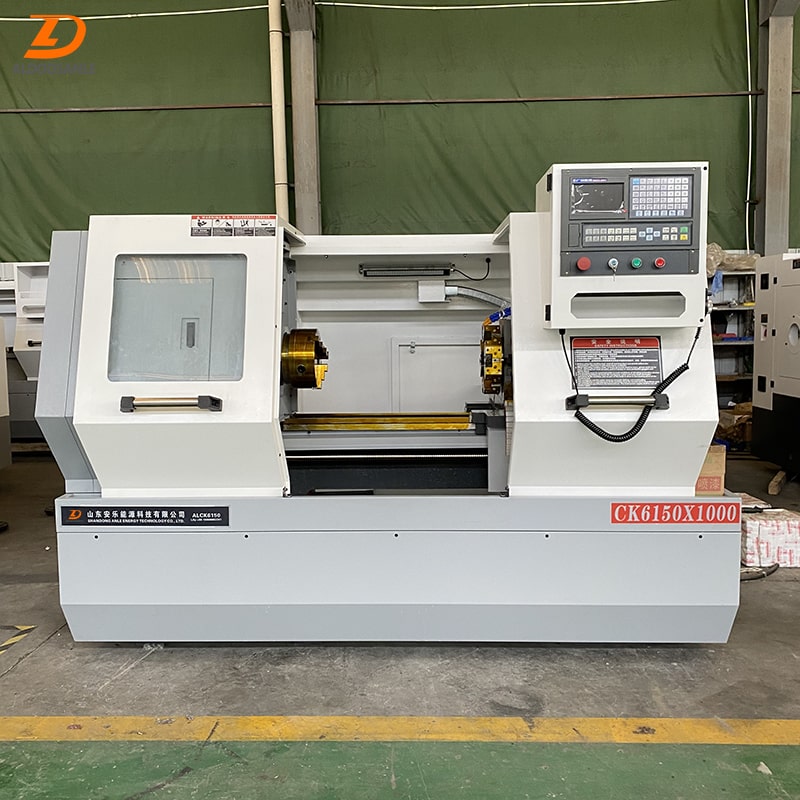

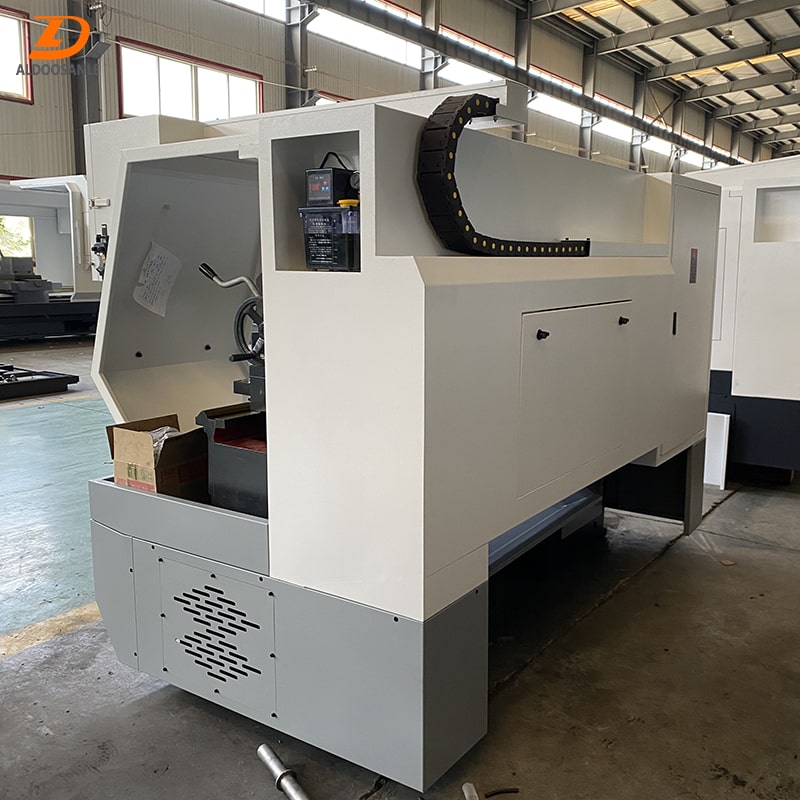

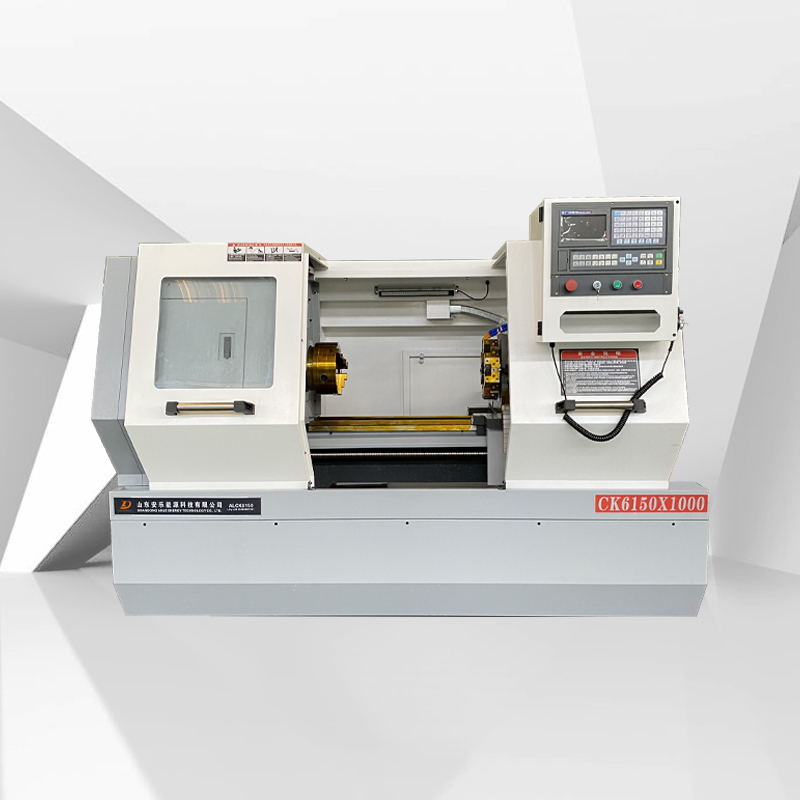

ALCK6150X1000 CNC lathe is an advanced equipment with high-efficiency and precision machining capabilities, which is widely used in many industries. This article will introduce the characteristics and application industries of ALCK6150X1000 CNC lathe in detail, and demonstrate its excellent performance in improving processing efficiency and quality.
ALCK6150X1000 CNC lathe is widely used in many industries such as automobile manufacturing, aerospace, general machinery manufacturing and iron and steel industry due to its high-precision processing capability and multi-functional processing characteristics. Its excellent performance and reliability make it a key tool in the processing field, promoting the development and progress of related industries.
1. High-precision processing capability: ALCK6150X1000 CNC lathe adopts advanced CNC technology and precision spindle system, which can realize high-precision turning processing and ensure the accuracy of product size and surface quality.
2. Multi-functional processing: The CNC lathe has multiple processing functions such as turning, milling, and drilling, and is suitable for the processing requirements of various complex workpieces, improving the flexibility and efficiency of processing.
3. Fast cutting speed: Equipped with high-speed spindle and feed system, ALCK6150X1000 CNC lathe can realize fast cutting, shorten processing cycle and improve production efficiency.
4. Stable and reliable operation: The equipment adopts stable structural design and advanced control system to ensure the stability and reliability of the equipment in long-term operation.
1. Automobile manufacturing industry: ALCK6150X1000 CNC lathe plays an important role in the processing of auto parts. It can accurately process key parts such as engine block, crankshaft, bearing housing, etc., and improve the quality and efficiency of automobile manufacturing.
2. Aerospace industry: This CNC lathe can be used to process complex workpieces such as aircraft engine parts and aerospace structural parts, ensuring its accuracy and reliability, and meeting the high requirements of the aerospace industry.
3. General machinery manufacturing: ALCK6150X1000 CNC lathe is suitable for manufacturing precision instruments, molds and industrial machinery, providing efficient and precise processing solutions for this industry.
4. Iron and steel industry: In the field of iron and steel processing, this CNC lathe can be used to process parts such as bearings, bushings, and journals to improve production efficiency and product quality.
1) System:GSK
2) Pneumatic collets.
3) Gang Type Tool.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
7) Three-jaw manual chuck
8) Vertical four-station tool holder
1) CNC system: Siemens, Fanuc, KND.
2) Hydraulic chuck, pneumatic chuck.
3) 4/6/8station electric tool post.
4) Automatic bar feeder.
5)Device for automatic feeding (bar feeder)
6)Chip Conveyor
7)Parts catcher
8)Hydraulic tailstock
Item |
Unit |
ALCK6150*1000 |
Max swing over bed |
mm |
Φ500 |
Maximum swing over slide |
mm |
Φ290 |
Maximum cutting diameter |
mm |
Φ500 |
Maximum processing length |
mm |
1000 |
X/Z axis maximum stroke |
mm |
300/1000 |
X/Z axis minimum displacement unit |
mm |
0.001 |
Spindle hole diameter |
mm |
Φ82 |
Spindle series |
|
Promise/Three gears (frequency conversion within gears) |
Spindle speed limit |
rpm |
150-2000/60-1600 |
Spindle end |
mm |
A2-8/C8 |
Main motor power (frequency conversion) |
kW |
7.5 |
Frequency converter |
kW |
7.5 |
X/Z axis |
N.m |
5/7.5 |
X/Z axis rapid traverse speed |
m/min |
6/8 |
Tool holder type |
|
4-station tool holder (Wen chang) |
Tool bar size |
mm |
25*25 |
Repeated positioning accuracy of tool post |
mm |
≤0.004 |
Diameter of tailstock sleeve |
mm |
Φ65 |
Tailstock sleeve stroke |
mm |
130 |
Tailstock center taper hole |
|
Mohs 5# |
Electricity demand (power/current) |
kW/A |
15kW/20A |
Weight |
Kg |
2500 |
Machine size |
mm |
3030*1600*2050 |
