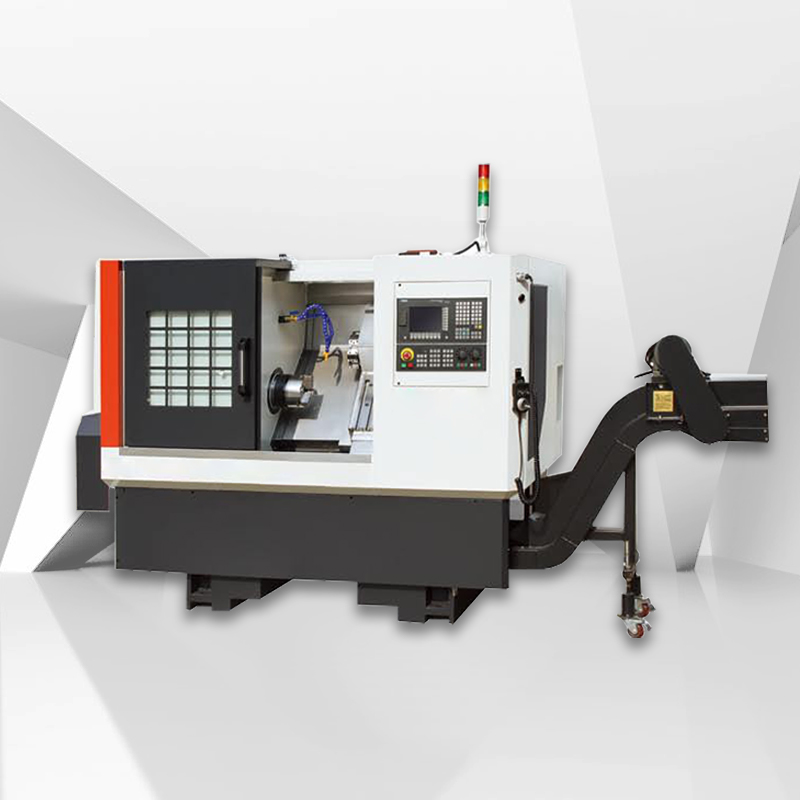

ALTCK6340 Slant bed cnc lathe machine

ALTCK6340 CNC lathe is widely used in general machinery manufacturing, mold manufacturing, aerospace, automobile manufacturing and other industries due to its high-precision processing capability, multi-functional processing capability, efficient production capacity and stable performance. By selecting suitable optional configurations, the processing efficiency and processing quality can be further improved to meet the customized processing needs of different industries.

Features of CNC lathes:

1. High-precision machining capability: ALTCK6340 CNC lathe adopts advanced numerical control technology and precision transmission system, which has excellent machining accuracy. Slant bed cnc lathe can maintain the dimensional accuracy and surface quality of parts, and meet the processing tasks that require high precision.

2. Multifunctional processing capability: ALTCK6340 CNC lathe has various processing functions, including turning, boring, drilling and other operations. Slant bed cnc lathe can adapt to the processing needs of various complex parts and provide flexible and diverse processing options.

3. Efficient production capacity: The equipment is equipped with high-speed spindle and feeding system to achieve fast processing speed and efficient production capacity. Whether it is batch production or small batch multi-variety processing needs, ALTCK6340 can provide high-efficiency production solutions.

4. Advanced numerical control system: ALTCK6340 numerical control lathe is equipped with advanced numerical control system, which has a friendly man-machine interface and rich processing control functions. Operators can easily program and operate, realizing efficient production control and process management.

5. Stable performance: ALTCK6340 CNC lathe has stable and reliable performance, can run stably for a long time, and maintains the consistency of high-precision machining. The rigid structure and high-quality components of the Slant bed cnc lathe guarantee the stability and reliability of the machining process.

Application industry:

ALTCK6340 CNC lathes are widely used in many industries, including general machinery manufacturing, mold manufacturing, aerospace, automobile manufacturing, etc. Automatic lathes can be used to process various complex parts, such as shaft parts, sleeve parts, flange parts, etc.

Standard configuration:

1) Spindle unit (3000 rpm)

2) Hydraulic Chuck

3) Spindle servo motor

4) Taiwan rail

5) Domestic ball screw

6) 8-station hydraulic turret

Optional configuration:

1) Taiwan unit (5000 rpm)

2) Taiwan screw

3) chip conveyor

4) 12-station hydraulic turret

Video

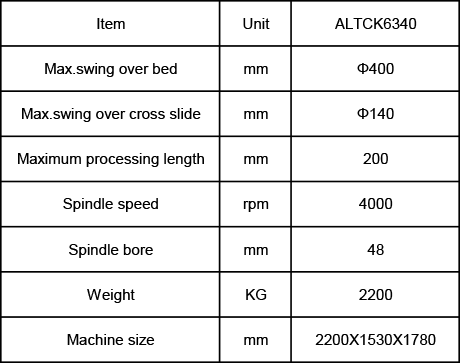

Product Parameters
