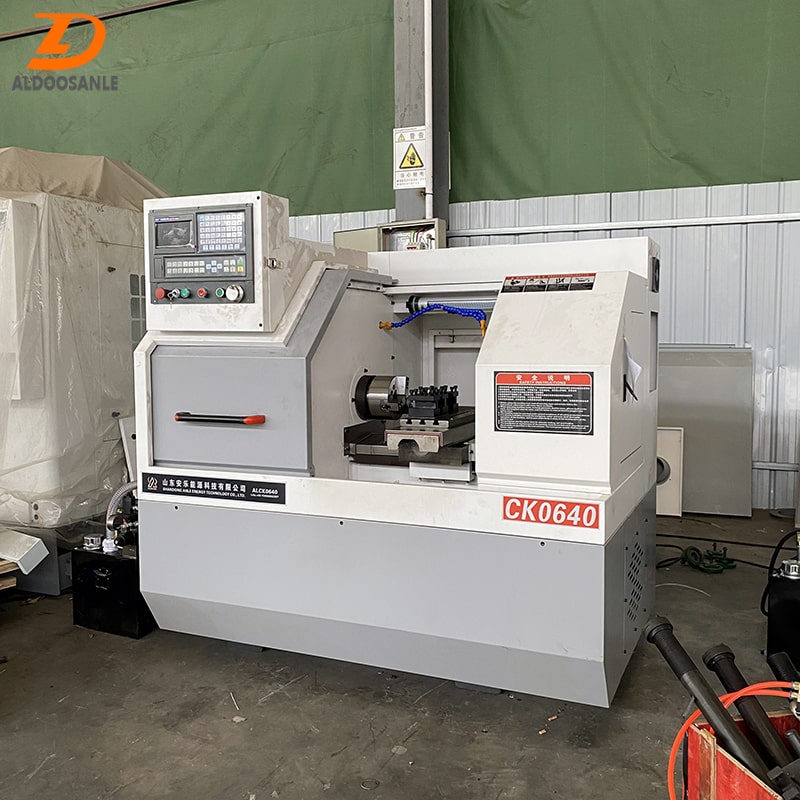

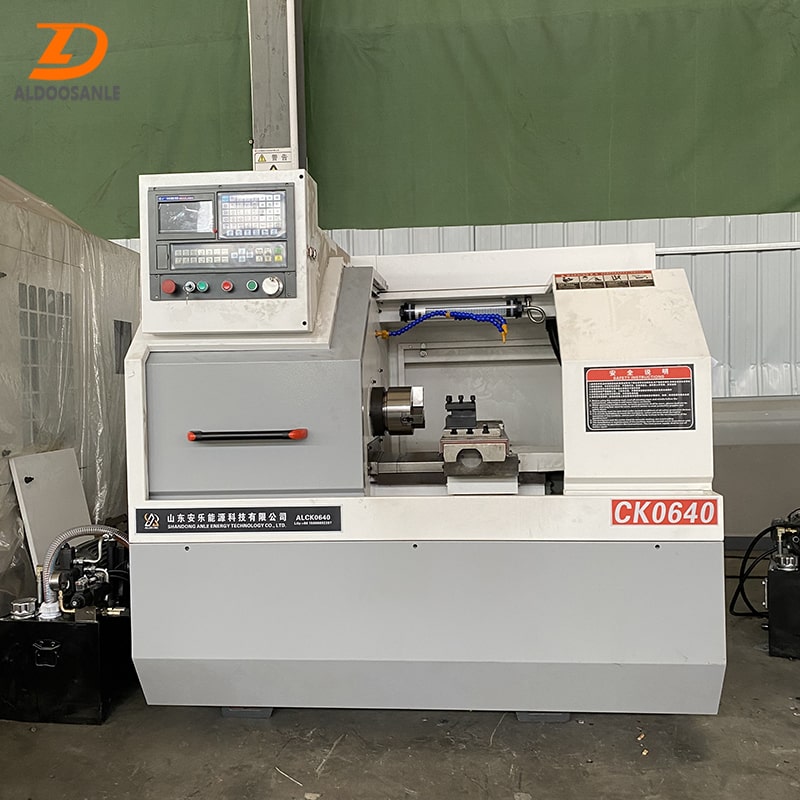

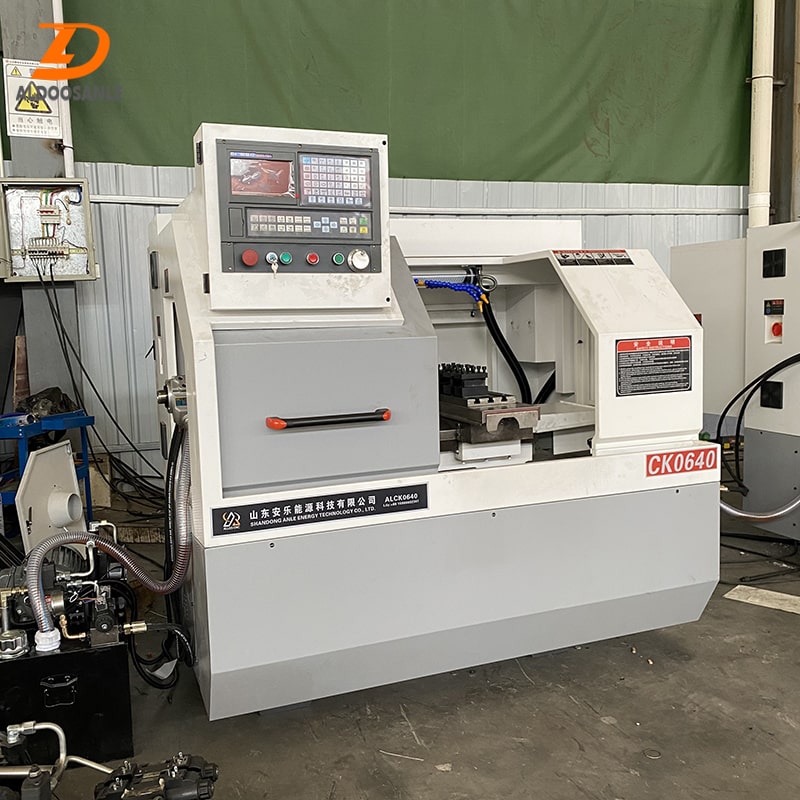

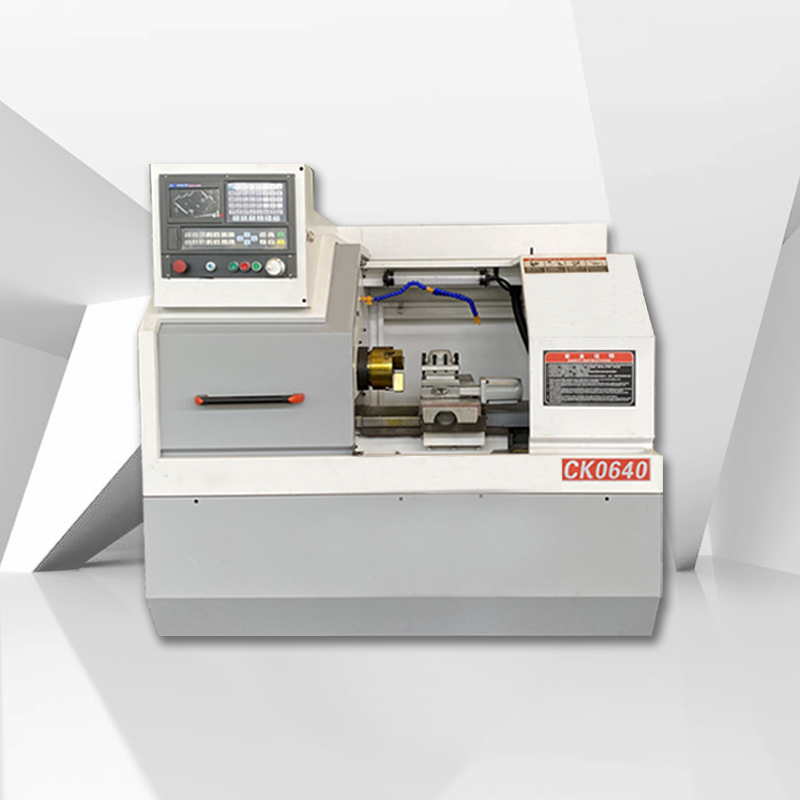

ALCK0640 CNC lathe
CNC lathe ALCK0640 is a high-performance CNC lathe, providing accurate and efficient processing solutions for manufacturing customers. With reliable performance and advanced functions, ALCK0640 provides excellent capabilities for the machining of various small and medium-sized workpieces.
ALCK0640 adopts advanced CNC system, which can realize precise processing control and motion control. The high-precision spindle and stable speed of the CNC lathe ensure excellent processing quality and cutting ability. The tool post design of the CNC lathe facilitates quick replacement of cutting tools and improves work efficiency.
STANDARD CONFIGURATION

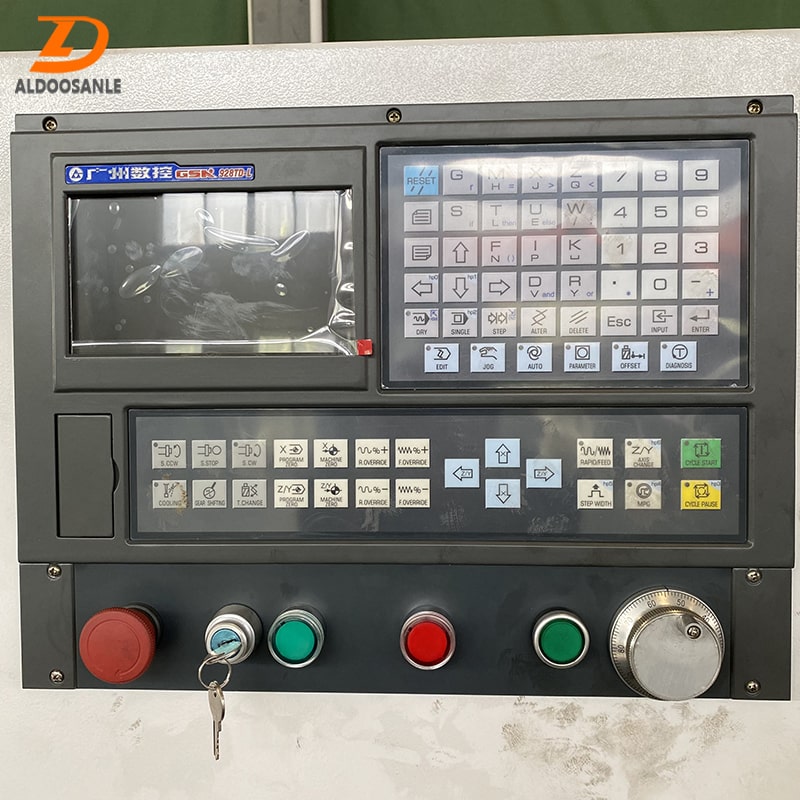

1) System:GSKTB3, servo motor and drive.
2) Pneumatic collets.
3) Gang Type Tool.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
OPTIONAL CONFIGURATION
1) CNC system: Siemens, Fanuc, KND.
2) Hydraulic chuck, pneumatic chuck ..
3) 4/6/8station electric tool post.
4) Automatic bar feeder.
Product Parameters
|
Item |
Unit |
ALCK0640 |
|
Max swing over bed |
mm |
Φ250 |
|
X-axis motor torque |
|
4Nm |
|
Z-axis motor torque |
|
4Nm |
|
Maximum swing over slide |
mm |
Φ120 |
|
Spindle hole diameter |
mm |
Φ48 |
|
Tool post form |
|
Row tool |
|
With hollow chuck pull rod through hole |
mm |
Φ40 |
|
Spindle speed limit |
rpm |
3000 |
|
Clamping device |
|
Pneumatic collet |
|
Knife square size |
mm |
20×20 (four stations) |
|
X/Z direction fast moving speed |
m/min |
6/8 |
|
X stroke |
mm |
200(Optional 300/400mm） |
|
Z stroke |
mm |
220 |
|
Main motor power |
KW |
3（Optional 4kw) |
|
Tailstock |
|
No tailstock |
|
X axis repeat positioning accuracy |
mm |
0.01 |
|
Z axis repeat positioning accuracy |
mm |
0.01 |
|
Machine weight |
Kg |
800 |
|
Dimensions (length × width × height) |
mm |
1620×1340×1680 |
|
Control system |
|
GSKTB3 |
