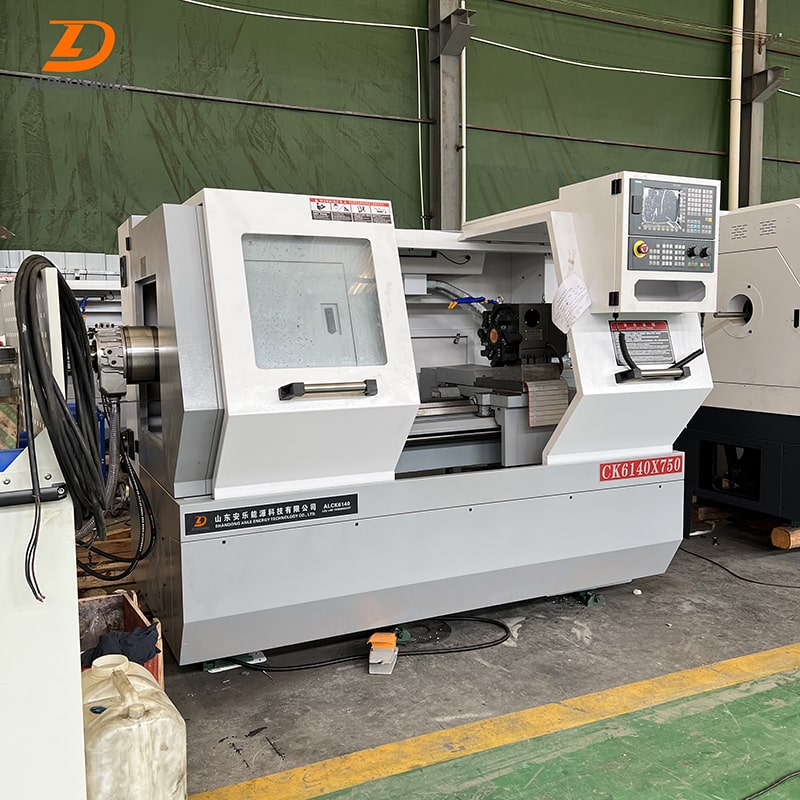

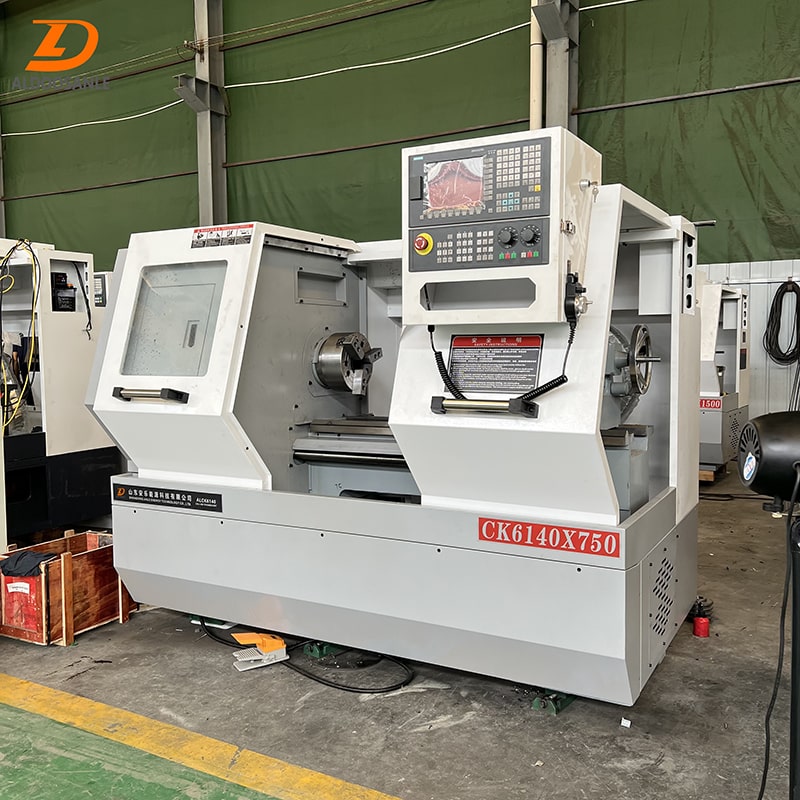

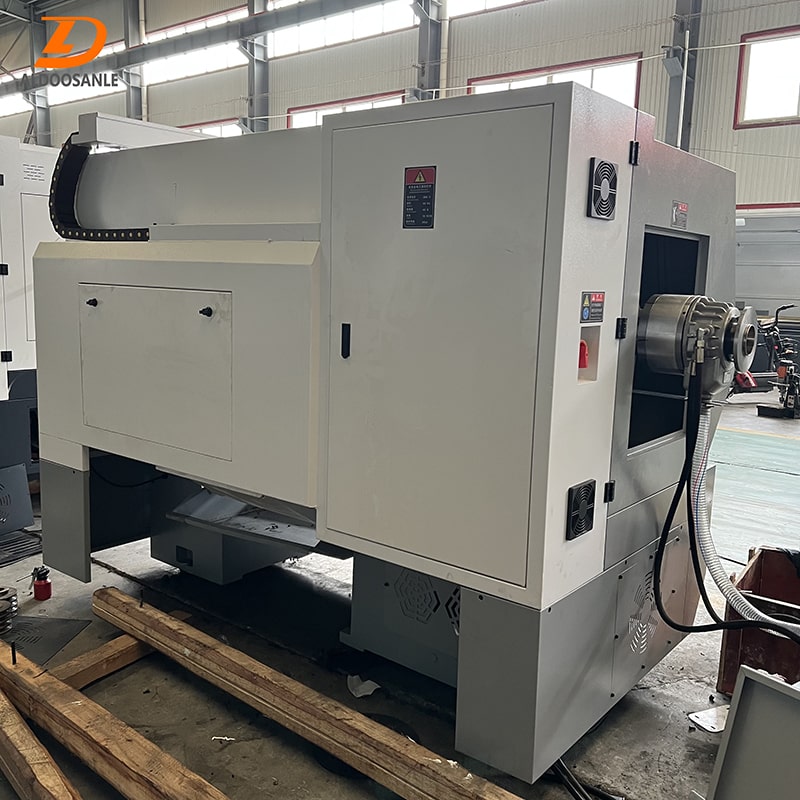

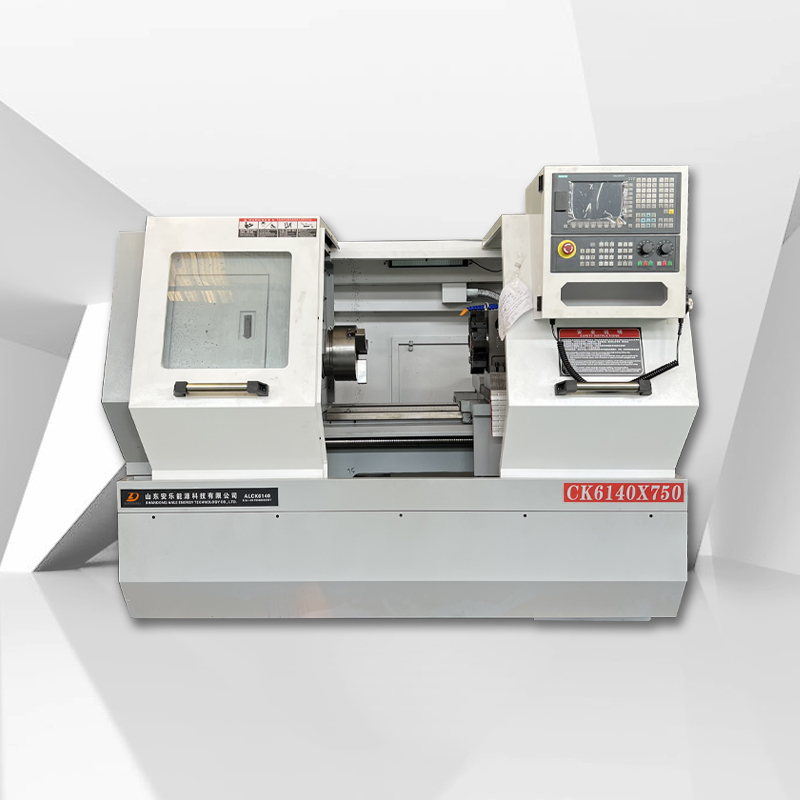

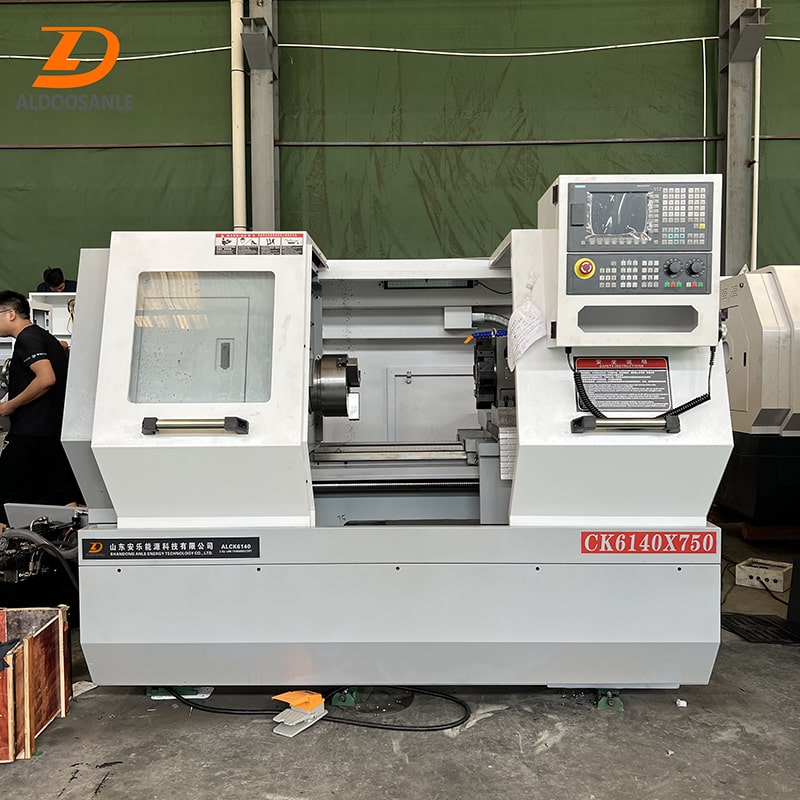

ALCK6140X750 CNC lathe is a high-precision, multi-functional and highly automated advanced processing equipment. The CNC lathe has the characteristics of high-precision processing capability, multi-functional operation, high automation and high rigid structure, and is suitable for the processing needs of parts in many industries.
CNC lathe ALCK6140X750 has the characteristics of high-precision processing capability, multi-functional operation, high automation and high rigid structure. CNC lathes are widely used in industries such as automobile industry, aerospace industry, electronics industry and general machinery manufacturing. By using this equipment, enterprises can improve production efficiency, improve product quality, and meet the needs of different industries for precision machining.
1. High-precision processing capability: ALCK6140X750 CNC lathe has high-precision processing capability, which can realize precise processing at the micron level, and meet the industry needs with extremely high requirements on the size and shape of parts.
2. Multi-function operation: The CNC lathe has a variety of operation functions, including turning, boring, tapping, etc., and can complete the processing tasks of various complex workpieces. Its flexible tool switching and motion control capabilities improve machining efficiency and precision.
3. High automation: ALCK6140X750 CNC lathe has the characteristics of high automation. By pre-writing the processing program, the operator only needs to simply set the parameters and monitor the processing process, and the machine can automatically complete complex processing tasks, improve production efficiency and reduce labor costs.
4. High rigid structure: This CNC lathe adopts a solid cast iron bed and high-quality mechanical transmission system, which has high rigidity and stability. The structural design reduces vibration and deformation to ensure the stability and precision of processing.
1. Automobile industry: ALCK6140X750 CNC lathes are widely used in the automobile industry to process key parts such as engine parts, transmission systems, and steering systems to improve automobile performance and quality.
2. Aerospace industry: In the field of aerospace, the requirements for precision and reliability of parts are extremely high. ALCK6140X750 CNC lathe is used to process aircraft engine parts, spacecraft structural parts, etc., meeting stringent aerospace standards.
3. Electronics industry: The components of electronic equipment usually require high-precision processing. ALCK6140X750 CNC lathe can be used to process the housings and connectors of electronic components to ensure accuracy and interchangeability.
4. General machinery manufacturing: CNC lathes are widely used in general machinery manufacturing. ALCK6140X750 CNC lathe can be used to process workpieces of various complex shapes, such as bearing housings, gears, cams, etc., to meet the processing needs of different industries.
1) System:GSK980TB3
2) Pneumatic collets.
3) Gang Type Tool.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
7) Three-jaw manual chuck
8) Vertical four-station tool holder
1) CNC system: Siemens, Fanuc, KND.
2) Hydraulic chuck, pneumatic chuck.
3) 4/6/8station electric tool post.
4) Automatic bar feeder.
5)Device for automatic feeding (bar feeder)
6)Chip Conveyor
7)Parts catcher
8)Hydraulic tailstock
Model |
ALCK6140*750 |
|
Processing capacity |
Maximum turning diameter of bed |
400mm |
|
Maximum turning diameter on the tool post |
220mm |
|
Center distance |
750mm |
|
Rail width |
360mm |
|
X stroke |
250mm |
|
Z-stroke |
900mm |
Headstock |
Spindle hole diameter |
52mm |
|
Spindle end type |
ISO-C6 |
|
Taper of spindle bore |
MT6 |
|
Spindle speed range (number of stages) |
Gear two-speed 50-1600rpm/single axis 2200rpm (optional) |
Skateboard |
Fast moving speed of carriage |
X/Z:5/8m/min |
|
Repeatability |
Z:0.013mm X:0.012mm |
|
Number of tools |
4 |
|
Tool change time |
1sec |
Tailstock |
Diameter of tailstock sleeve |
65mm |
|
Taper of tailstock sleeve |
MT4 |
|
Maximum stroke of tailstock sleeve |
120mm |
Motor |
Servo main motor power |
5.5KW |
|
Cooling pump |
125W |
PACKING(L*W*H) |
2350*1400*1800mm |
|
WEIGHT(N.W/G.W) |
1550/1650kg |
