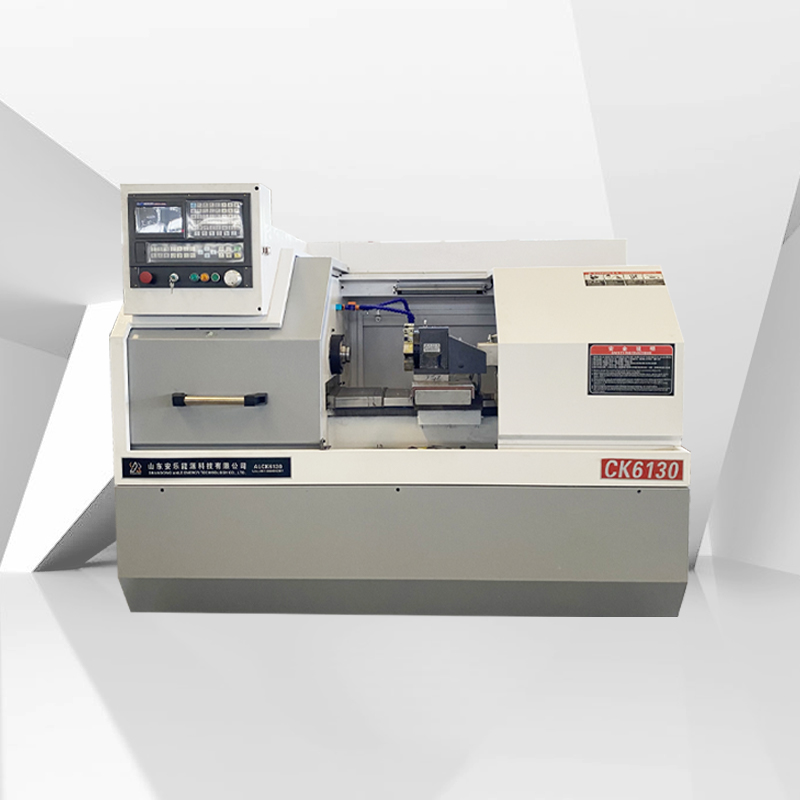

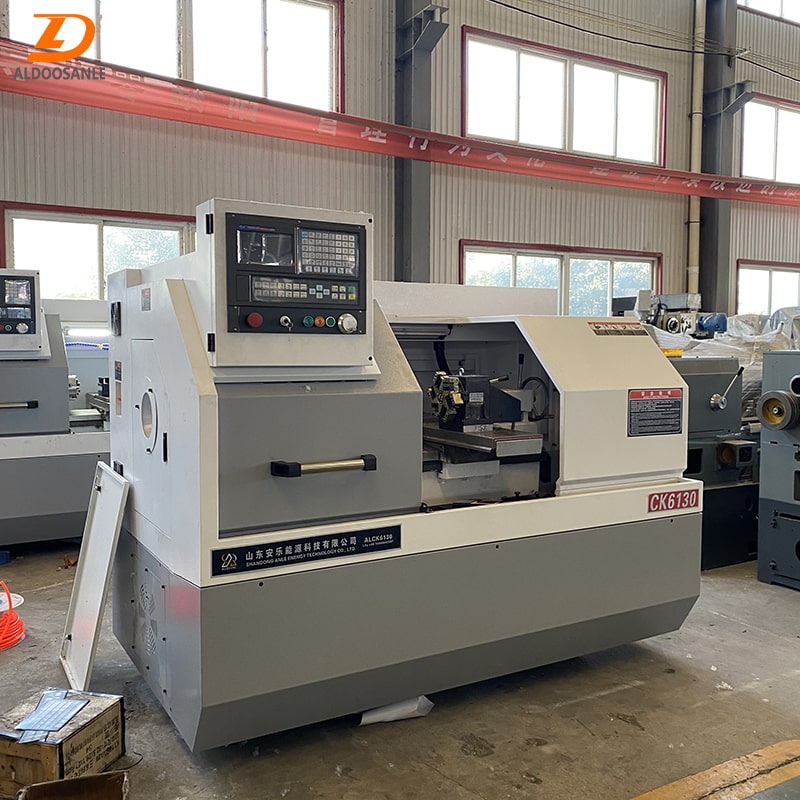

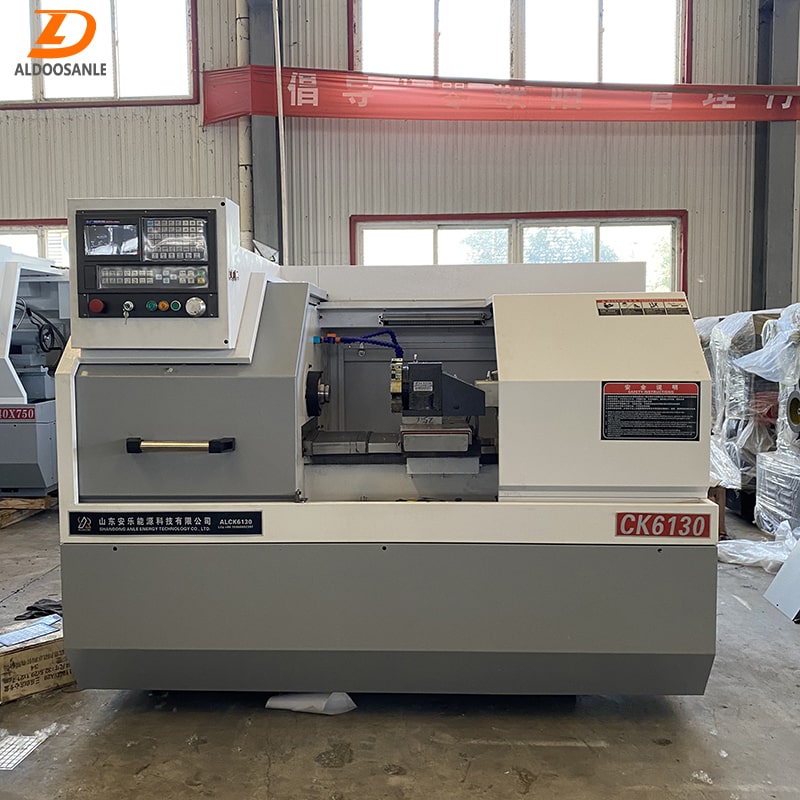

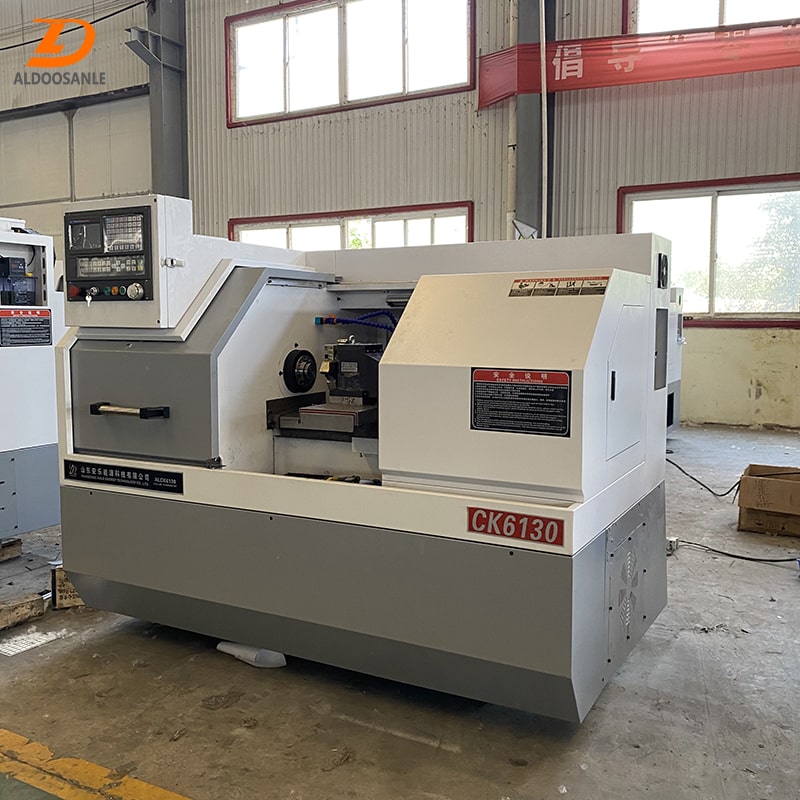

ALCK6130 CNC lathe
ALCK6130 CNC lathe is a precision machining equipment using CNC technology. CNC lathes have the characteristics of high precision, high efficiency, high rigidity and stability. It adopts advanced numerical control system, which can realize complex processing operations and various cutting functions. The lathe structure adopts cast iron body, which has good rigidity and shock resistance.
ALCK6130 CNC lathe is a multifunctional processing equipment, suitable for industries such as machinery manufacturing, aerospace, automobile and electronics. It can process various metal workpieces, realize high-precision and high-efficiency processing requirements, and provide important support for the production of various industries.
Machine characteristic:
1)Larger spindle bore
2)High-quality solid casting of the bed and base
3)High torque and speed
4)Automatic lubrication system
5)Automatic coolant system
6)Reinforced guides
STANDARD CONFIGURATION

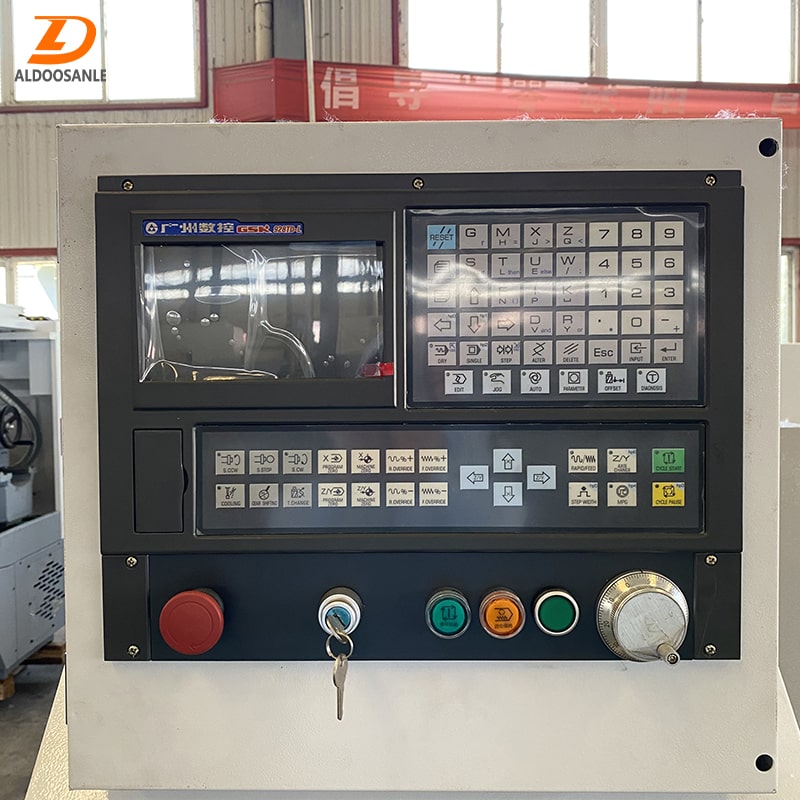

1) System:GSKTB3, servo motor and drive.
2) Pneumatic collets.
3) Gang Type Tool.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
OPTIONAL CONFIGURATION
1) CNC system: Siemens, Fanuc, KND.
2) Hydraulic chuck, pneumatic chuck.
3) 4/6/8station electric tool post.
4) Automatic bar feeder.
5)Device for automatic feeding (bar feeder)
6)Chip Conveyor
7)Parts catcher
8)Hydraulic tailstock
Product Parameters
|
Item |
Unit |
ALCK6130 |
|
Max swing over bed |
mm |
Φ300 |
|
X-axis motor torque |
|
4Nm |
|
Z-axis motor torque |
|
4Nm |
|
Maximum swing over slide |
mm |
Φ130 |
|
Spindle hole diameter |
mm |
Φ48 |
|
Tool post form |
|
Tool post |
|
With hollow chuck pull rod through hole |
mm |
Φ40 |
|
Spindle speed limit |
rpm |
2200 |
|
Taper of inner hole of tailstock sleeve |
No |
Mohs 4 |
|
Tailstock |
|
Manual |
|
Knife square size |
mm |
20×20 (four stations) |
|
Clamping device |
|
Collet/160 three-jaw chunk |
|
X/Z direction fast moving speed |
m/min |
6/8 |
|
X stroke |
mm |
280 |
|
Z stroke |
mm |
500 |
|
Main motor power |
KW |
3 |
|
X axis repeat positioning accuracy |
mm |
0.01 |
|
Z axis repeat positioning accuracy |
mm |
0.01 |
|
Machine weight |
Kg |
950 |
|
Dimensions (length × width × height) |
mm |
1600×1100×1650 |
