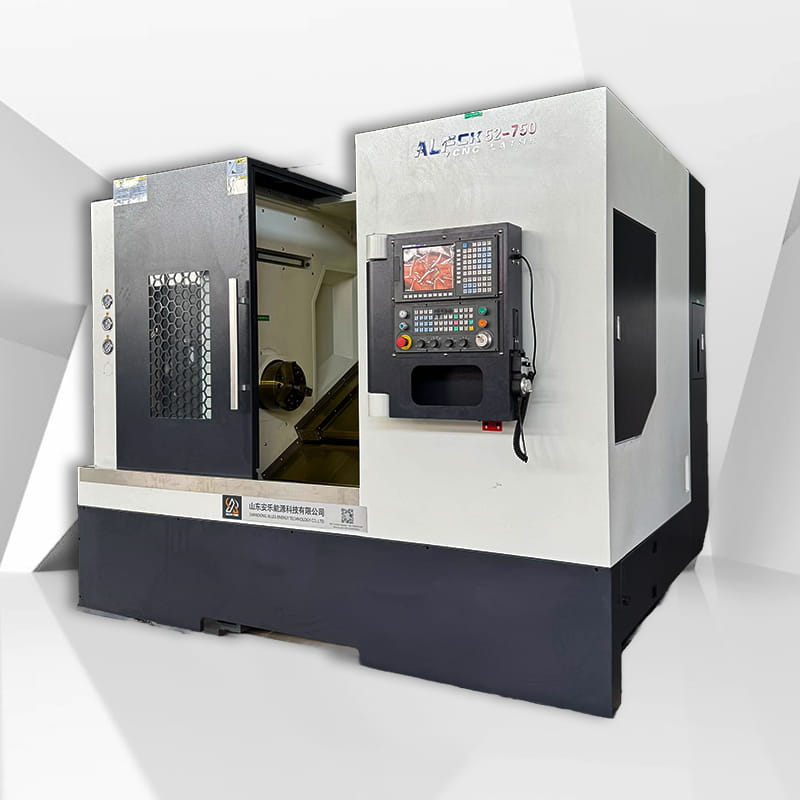

ALFCK52-750 Slant Bed CNC Lathe - High Precision Metal Turning Machine
Discover ALFCK52-750 slant bed CNC lathe from ALLES CNC. Max swing 520mm, 750mm turning length, 15kW spindle. Ideal for high-precision metal parts in auto, aerospace & general machining. Inquiry now!
The ALFCK52-750 is a robust and high-performance slant bed CNC lathe designed for efficient and precise machining of small to medium-sized workpieces. With its 45° inclined bed structure, excellent chip removal, and rigid construction, this machine delivers superior stability, accuracy, and productivity — making it perfect for automotive, aerospace, and general engineering applications.
Key Advantages:
Max swing over bed: Φ520mm
Max turning length: 750mm
Powerful 15kW spindle
High precision: Positioning ±0.01mm, Repeatability ±0.006mm
Excellent chip evacuation and thermal stability
[Inquiry Now / Get Quote]
Main technical parameters table
| Item | Specification |
| Max. swing over bed | Φ520 mm |
| Max. turning length | 750 mm |
| Max. weight of workpiece | 600 kg |
| Spindle motor power | 15 kW |
| Travel (X/Z) | 270 / 750 mm |
| Positioning accuracy | ±0.01 mm |
| Repeatability (X/Z) | ±0.006 mm |
| Machine dimensions (L×W×H) |
3000×1850×1710 mm |
Features
- Robust Slant Bed Design — 45° inclined bed ensures better rigidity, smoother chip flow, and easier operator access.
- High Precision & Stability — Taiwan linear guideways (or equivalent) + high-quality ball screws deliver excellent accuracy and surface finish.
- Powerful Spindle — 15kW main motor supports heavy-duty cutting with high torque.

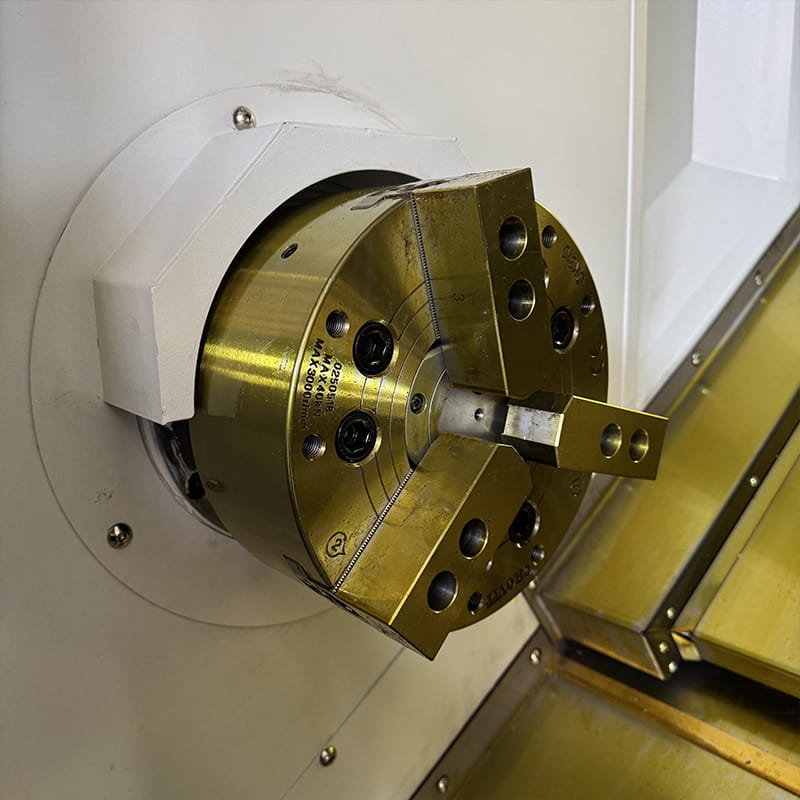

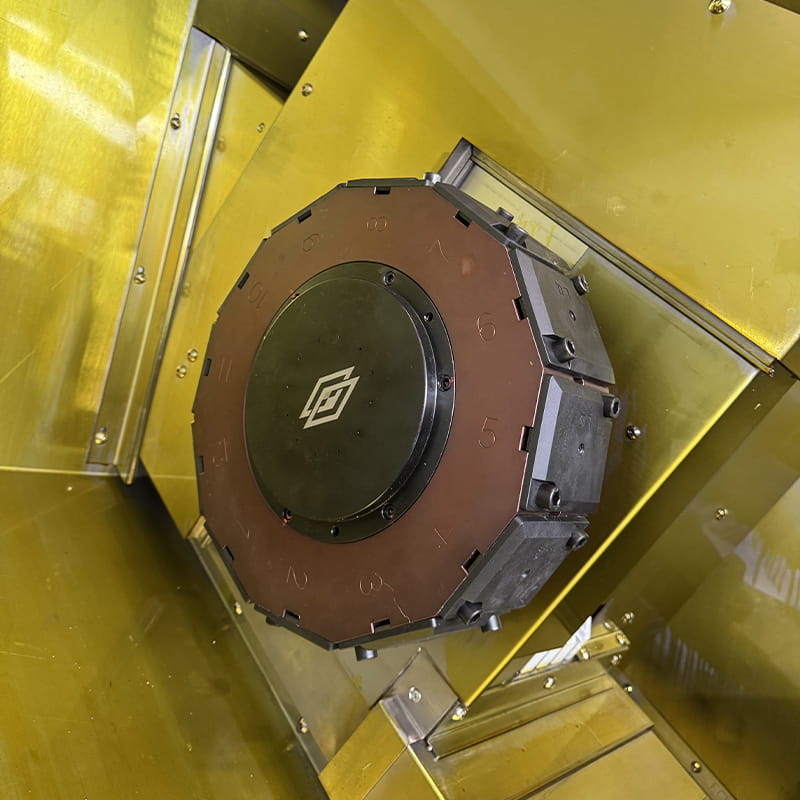

- Efficient Automation — Optional hydraulic chuck, turret, and tailstock for increased productivity.
- User-Friendly Control — Compatible with GSK, Fanuc, Siemens systems — easy programming and operation.
- Reliable & Durable — Strict quality control, CE certification, and real-factory testing (see inspection videos).
Applications
- Automotive parts (shafts, flanges, gears)
- Aerospace components
- General machinery and mold parts
- Energy and petrochemical fittings
Why choose the ALLES CNC ALFCK52-750?
- Competitive factory direct price
- Fast delivery & professional after-sales support
- Real customer cases (Russia shipment, factory inspection videos available)
- Customization options available
Ready to boost your production with the ALFCK52-750? Contact us today for a detailed quotation, technical specifications, or factory visit arrangement!
